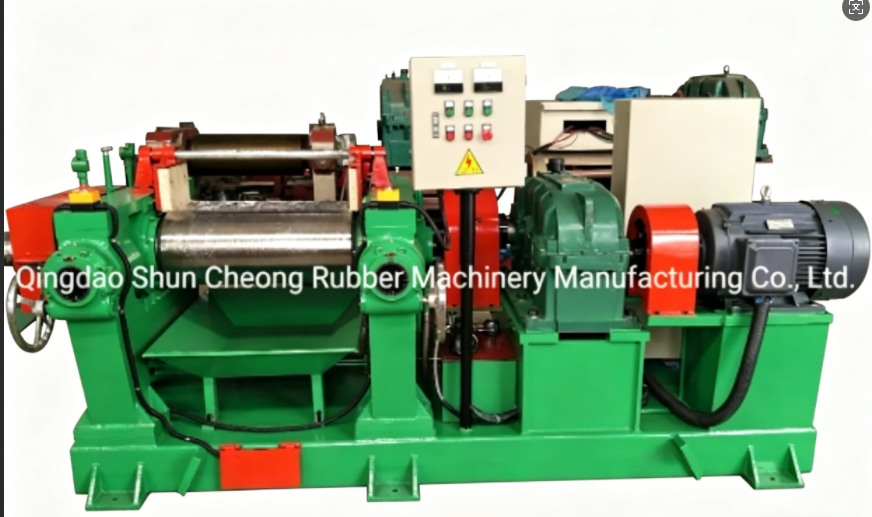

XK-560 Rubber Mixing Machine
Product Overview
The XK-560 Rubber Mixing Machine represents superior quality and advanced manufacturing expertise, designed for efficient rubber compounding and mixing operations in industrial applications.
Key Features
- 20 years of manufacturing experience
- High working efficiency and productivity
- Reliable quality with standard and advanced configuration options
- Very low noise operation
- Rolls made of LTG-H alloy chilled cast iron for durability
- Hard tooth speed reducing mechanism for quiet operation and long lifespan
- Special refining seal structure prevents lubricating oil leakage
- Human-oriented design with ergonomic controls
- Optional hydraulic or mechanical automatic mixing systems
- Manual or electrical roll nip adjustment
- Emergency safety button for operator protection
- 8-hour non-stop full load testing before shipment
Technical Specifications
| Specification |
Value |
| Model Number |
XK-560 |
| Control Type |
PLC |
| Automatic Grade |
Automatic |
| Power Source |
Electric |
| Type |
Open Mixing Mill |
| Roll Diameter |
560mm |
| Roll Working Length |
1530mm |
| Front Roll Linear Speed |
27.72 R/Min |
| Speed Ratio of Rolls |
1:1.2 |
| Compound Feeding Capacity |
50-60kg |
| Max. Roll Space |
15mm |
| Motor Power |
90kw |
| Certification |
CE, ISO |
| Origin |
China |
| Production Capacity |
20 Sets/Year |
Model Comparison
| Item |
XK-160 |
XK-250 |
XK-360 |
XK-400 |
XK-450 |
XK-550 |
XK-560 |
XK-660 |
XK-710 |
| Roll diameter (mm) |
160 |
250 |
360 |
400 |
450 |
550 |
560-510 |
660 |
710 |
| Roll working length (mm) |
320 |
620 |
900 |
1000 |
1200 |
1500 |
1530 |
2130 |
2200 |
| Front roll linear speed (r/min) |
9 |
16.3 |
16.7 |
19.3 |
21.8 |
22.5 |
27.2 |
28 |
31.9 |
| Speed ratio of rolls |
1:1.4 |
1:1.1 |
1:1.3 |
1:1.3 |
1:1.3 |
1:1.2 |
1:1.2 |
1:1.2 |
1:1.5 |
| Max roll space (mm) |
4.5 |
8 |
10 |
10 |
12 |
16 |
15 |
0.5-15 |
0.5-15 |
| Compound feeding capacity (kg) |
1-2 |
10-15 |
20-25 |
18-35 |
50 |
50-65 |
50-65 |
165 |
190 |
| Motor power (kW) |
5.5 |
18.5 |
30 |
45 |
55 |
110 |
90 |
240 |
280 |
| Dimensions L*W*H (mm) |
1133*920*1394 |
2722*1115*1345 |
4200*1780*1760 |
4920*1780*1800 |
5405*1740*1790 |
6646*2736*2105 |
6270*2282*2000 |
7280*3400*2530 |
8185*3910*2270 |
| Gross weight (T) |
~2 |
~3.2 |
~6.5 |
~8 |
~11.4 |
~22 |
~22.5 |
~49 |
~51 |
Product Images
We can design various kinds of non-standard rubber machinery according to your requirements.
Ordering & Delivery
Packing: Standard Export Packages
Delivery Time: 35 working days for one set of XK-560 rubber mixing machine
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine undergoes full assembly and rigorous testing before shipment to ensure optimal performance.
What's the machine quality guarantee?
We provide a one-year quality guarantee. Our machines incorporate world-renowned brand components to maintain perfect working condition and long-term reliability.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we provide overseas installation and technical support services. Installation costs are covered by the customer. Small machines typically require 2-3 days for installation, while larger production lines may take approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We are committed to delivering high-quality machines exactly as discussed and confirmed in your order. Our company culture is built on innovation, quality, integrity, and efficiency. We have established successful partnerships with numerous world-renowned rubber production manufacturers.
How can we go to your side?
Our facility is located in Qingdao City, Shandong province, China. The nearest airport is Qingdao Liuting Airport. We provide airport pickup services for visiting clients.
